46 Inch Seamless LCD Video Wall 3x3 500cd/M2 DLP Video Wall High Brightness

IDP Electronics Co., Ltd.
Contact Now

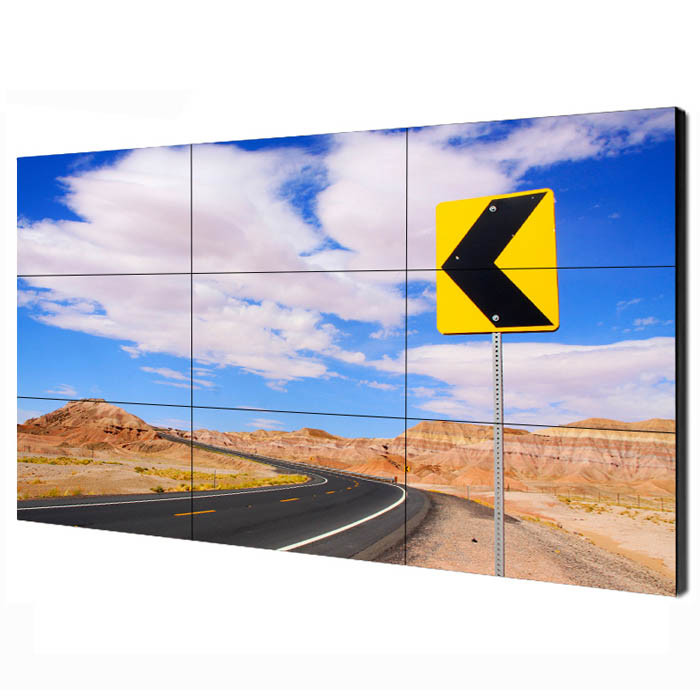

46 Inch Seamless LCD Video Wall 3x3 500cd/M2 DLP Video Wall High Brightness

Brand Name : IDP

Model Number : ID46E

Certification : CE,Rohs,FCC,CCC etc

Place of Origin : China

MOQ : 1-100pcs

Price : To be checked

Payment Terms : T/T

Supply Ability : 1000pieces/3 weeks

Delivery Time : 1 – 7 working days

Packaging Details : standard export package

Native Resolution : 1920X1080

Aspect Ratio : 16:9

Surface : Antiglare

Active Area : 1018.08(H) x 572.67(V) mm

Dot Pitch : 0.17675(H) x 0.53025(V) mm

Brightness : 500cd/m2

Contrast Ratio : 3000:1

Display Colors : 16.7M

Response Time : 8ms

View Angle : 89/89/89/89(L/R/U/D)

Frequency : 60Hz

Contact Now

46 Inch Seamless LCD Video Wall 3x3 500cd/M2 DLP Video Wall High Brightness

1. LCD Display Video Wall

2. DLP Commercial Video Wall

3. PDP Commercial Display

46 Inch Seamless Video Wall, magnificent picture, colorful, high definition, strong visual impact, has a good display, demonstration, advertising, publicity effect; easy to install, free from space constraints. 46 Inch Seamless Video Walll is widely used in: video surveillance, traffic control, security monitoring and national defense, stage entertainment, TV studios, stock securities, large-scale exhibitions, shopping malls, banks, office halls, company welcome screens, specialty stores, dispatching Command and so on.

The video wall can be LCD display, DLP display or PDP display. Below are the main features of LCD Display.

High Brightness Seamless Video Wall

Seamless Video Wall has a beautiful wall and a compact overall structure, which can save a lot of use space, has good heat dissipation, and can adapt to long-term work in various environments;
Hardware architecture, software operating system, pure green version control software does not need to be installed; the interface is simple, and the operation is extremely user-friendly.

Main Features:
1. Super narrow seamless lcd video wall, gap(between two displays) is from the original tens of millimeters to current millimeters levers as 6.7mm, 5.7mm, 5.5mm, 5.3mm.
It is said Samsung will release 3.5mm display in 2014. If that comes true, it will be a ground-breaking improvement of lcd video wall.
2. High brightness and high contrast. The brightness is 450cd/m2 or 700cd/m2 which can meet the demands of indoor environment. The high contrast up to 4000:1 can display the picture in a pretty vivid way.
3. LED backlight. It is a kind of energy save technology, as well as small size, long lifetime and no radiation etc. Meanwhile it can re-show the picture vividly and in the original color.

4. The picture on the video wall is uniform because of led backlight and the light compensation point technology.

***Available size: 46 inch, 47 inch, 55 inch.

Specifications:

Panel Data Panel Brand For Samsung
Size 46 inch
Native Resolution 1920x1080
Aspect Ratio 16:09
Surface Antiglare
Active Area 1018.08(H) x 572.67(V) mm
Dot Pitch 0.17675(H) x 0.53025(V) mm
Brightness 500cd/m2
Contrast Ratio 3000:01:00
Display Colors 16.7M
Response Time 8ms
View Angle 89/89/89/89(L/R/U/D)
Frequency 60Hz

General Information Bezel-to-bezel width 5.3mm
Inputs VGA x1
HDMI x1
DVI x1
Video/Audio x1
RS232 x1
Outputs RS232 x1
Optional DP in/DP out
Image Resolution 5000 x 5000 px Max
Video Resolution 1920 x 1080p Max
Menu Language English, Germany, Russian, French and Spanish etc
Power Supply AC 110 ~ 240V
Operation Temperature 0℃~40℃
Operation Humidity 20% ~ 80%
Operating Altitude 0~3,000 meters
Storage Temperature -20℃~60℃
Storage Humidity 0 ~ 90%
Installation On the wall, on the floor, in the cabinet.

Remarks: The specification is subject to change without notice in advance.
