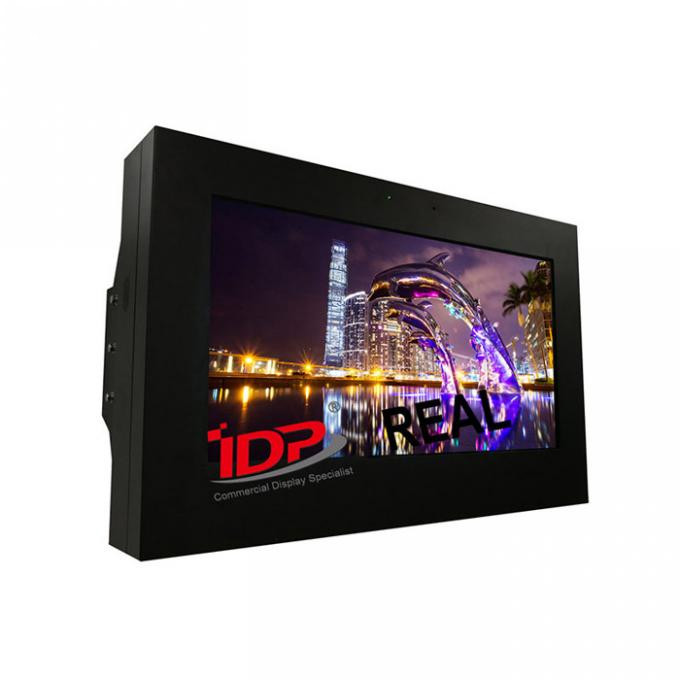

43 Inch Wall-mounted Multifunctional Outdoor Digital Signage Display
Thanks to technology progress, the outdoor lcd display becomes more and more reliable. By integrated the digital signage solution and outdoor design, it extends the lcd digital signage from indoor to outdoor, a vast market demand.
What’s more the Android system provides an access to users which make it possible to customize personalized applications.
Main Features:
Scrolling message, the pre-set message can be displayed.
Auto play back advertisement after power on, no need operation manually.
Easy upgraded if the advertisement business layout changes.
Remotely manage devices in different locations by internet.
Support online video dreaming.
OEM/ODM service: digital signage enclosure, functions etc.
Applications:
shopping street, plaza, gas station, entrance of store, university, industrial park, sports event field, citizen park, scenic spot, CBD area etc.
Specifications:
| Parameters |
| Panel Data | Panel Brand | For Samsung/LG |
| Size | 43 inch |
| Native Resolution | 3840X2160 |
| Aspect Ratio | 16:9 |
| Surface | Antiglare, hard coating |
| Active Area | 941.184(W)X529.416(H)mm |
| Dot Pitch | 0.1634(H) × 0.4902(V)mm |
| Brightness | 500cd/m2(customizable) |
| Contrast Ratio | 4000:1 |
| Display Colors | 16.7M |
| Response Time | 8ms |
| View Angle | 178°(H) / 178°(V) |
| Frequency | 60Hz |
| Network Data | Android | ARM Cortex Quad Core 1.8G Hz |
| RAM | 2GB |
| ROM | 8GB |
| OS | Android 4.1/4.2 or above |
| Video decoding | HD H.264 2160p video decoding
Multi-format FHD(1920x1080P) video decoding |
| Audio | Integrated HI-FI 100dB Audio Codec |
| Picture format | JPG, PNG, JPEG... |
| TXT | YES |
| Main I/O | HDMI x1, VGA x1, SD/TF slot x1, USB x2, RJ45 x1 |
| WiFi | Built-in Wifi(802.11b/g/n) |
| General Information | Image Resolution | 5000 x 5000 px Max |
| Color | Silver, Black, White or Customized |
| Material | Fine Aluminum + AR safe glass |
| Speaker | 10W x2 |
| Remote Control | IR Remote Control |
| Menu Language | English, Germany, Russian, French and Spanish etc |
| Power Supply | AC 110 ~ 240V |
| Operation Temperature | -40 ℃~+55℃ |
| Operation Humidity | 5% ~ 100% |
| Operating Altitude | 0~3,000 meters |
| Storage Temperature | -50 ℃~60℃ |
| Storage Humidity | 0 ~ 90% |
Note:
1.OEM/ODM for various functionalities, designs , shapes etc.
2.Optional touch screen settings.
3.The details are subject to upgraded without notice in advance.
